Modern microchips shrink rapidly every single year. The semiconductor industry pushes relentlessly toward sub-5nm and 3nm nodes. Consequently, the manufacturing margin of error has evaporated to absolute zero. The foundation of every functional microchip is the silicon wafer. Fabricating these pristine substrates requires environments defined by extreme heat and highly corrosive chemical interactions.
Process engineers and fab managers constantly face a critical material dilemma when outfitting their chambers. Should they choose high-purity graphite or fused quartz? Both materials are indispensable to the fabrication ecosystem. Understanding their distinct thermal, chemical, and structural behaviors is paramount. Making the correct material selection is not merely a technical preference. It is a strategic decision. It directly optimizes yield, prevents catastrophic downtime, and drastically lowers the Total Cost of Ownership in silicon wafer fabrication.
Extreme Thermal Stability: Semiconductor graphite consistently outperforms standard materials in high-temperature environments exceeding 1500°C. This makes it the undisputed structural choice for heating elements and susceptors.
Chemical Inertness: Quartz offers excellent baseline purity. However, graphite encapsulated with Silicon Carbide provides superior, long-lasting resistance to the corrosive plasmas and precursor gases utilized in epitaxial growth.
Crystal Growth Synergy: Quartz and graphite are complementary forces in the Czochralski process. Quartz serves as the inert inner crucible holding molten silicon. Carbon-based components provide essential structural support and uniform heat generation.
Cost Efficiency: Premium graphite demands a larger initial capital investment. Its extended operational lifespan and immunity to thermal deformation consistently yield a lower Total Cost of Ownership compared to fragile, highly consumable fused quartz.
In the high-stakes realm of semiconductor manufacturing, we scrutinize the materials used to construct fabrication equipment just as heavily as the silicon itself. As process engineers, we rigorously evaluate every consumable component entering a cleanroom environment. A single miscalculation in material properties triggers devastating yield losses.
Silicon wafers possess extreme sensitivity to foreign particles. Trace metallic impurities measured in parts-per-billion, such as iron, copper, or aluminum, easily diffuse into the silicon lattice during high-temperature baking cycles. Think about the reality on the fab floor. If a low-grade chamber component outgasses a microscopic amount of copper during a 1000°C thermal oxidation step, those rogue ions create deep-level traps. These traps alter the semiconductor's electrical conductivity. This invisible contamination instantly renders an entire batch of 300mm wafers completely useless. Any material introduced into the fab must exhibit exceptional purity and absolute structural stability.
The internal atmosphere of a semiconductor fab is notoriously aggressive. During the pulling of a monocrystalline silicon ingot, ambient temperatures routinely approach or exceed 1500°C. Beyond the intense heat, internal components face punishing rapid thermal cycling. They endure continuous bombardment by highly reactive chemical gases like hydrogen chloride and ammonia. Consumable materials must maintain their dimensional accuracy and chemical neutrality under these relentless conditions. They cannot shed particles or warp.
Before diving into the specific materials, we must acknowledge a massive shift happening across the industry. Looking at current trajectory analyses within the semiconductor sector, the aggressive scaling to 2nm and Gate-All-Around architectures has fundamentally altered material procurement strategies. The thermal budget for modern wafer processing has become incredibly stringent. Absolute temperature uniformity is now mandatory.
Consequently, industry experts note a definitive migration away from legacy quartz consumables in advanced epitaxial and high-temperature processing chambers. Leading fabs are increasingly standardizing on SiC-coated graphite to mitigate the risks of micro-contamination and thermal variance. They view the higher initial cost as a mandatory insurance policy for protecting ultra-high-value wafer batches.
Semiconductor graphite is a highly specialized, ultra-pure evolution of synthetic carbon. Standard industrial graphite is utilized in metallurgy or mechanical lubrication. The semiconductor-grade variant is entirely different. It is engineered at the molecular level to endure the rigorous, zero-tolerance demands of microelectronics fabrication.

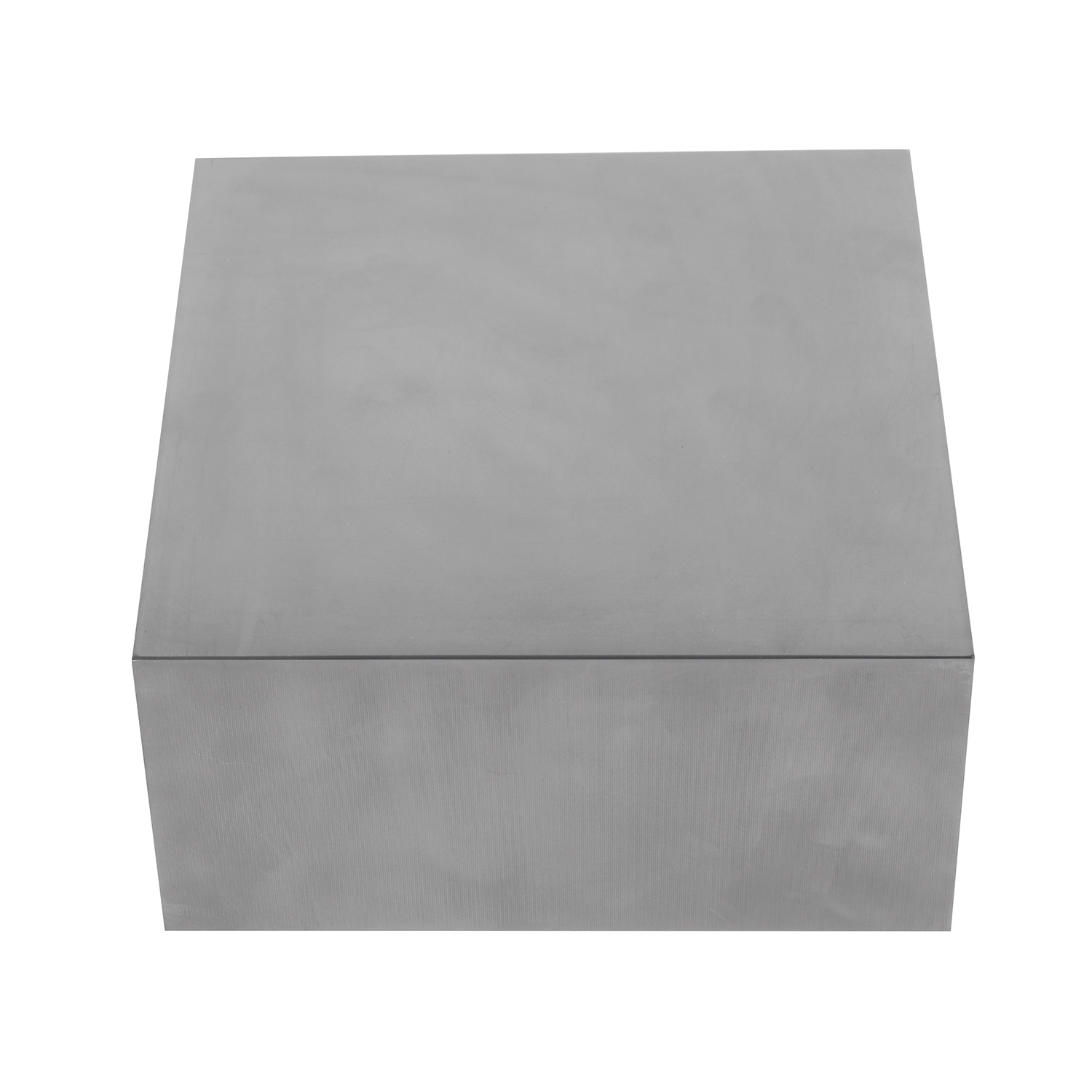

The ultimate performance of a finished fab component relies entirely on the integrity of its foundation. The production of premium Semiconductor Graphite Raw Material involves a highly complex, multi-stage manufacturing protocol. It begins with isostatic pressing. This specialized technique ensures the carbon matrix develops a uniform, isotropic structure. This guarantees the material will conduct heat and expand equally in all directions.
Following this structural formation, the carbon undergoes extreme high-temperature graphitization. Finally, it faces a rigorous halogen purification process. This step utilizes chlorine and fluorine gases at temperatures exceeding 2000°C to aggressively strip away metallic impurities. This pristine raw material achieves an ash content of less than 5 parts per million. This ultra-low impurity level dictates the final component's thermal conductivity and mechanical strength.
Ultra-pure graphite is thermally indestructible. However, bare carbon surfaces retain a microscopic porosity that can shed fine dust particles. In a Class 1 cleanroom, particle shedding is a fatal flaw. To mitigate this risk, semiconductor graphite is almost exclusively coated with a dense, impenetrable layer of Silicon Carbide via Chemical Vapor Deposition. This specialized SiC coating perfectly seals the porous graphite substrate. It permanently locks in any potential carbon dust while providing a robust shield against corrosive epitaxial gases. This vital encapsulation significantly extends the component's operational lifespan.
To execute an objective material evaluation, procurement teams must also understand the distinct properties of fused quartz. This material has historically served as a foundational pillar in semiconductor manufacturing.
Fused quartz is fundamentally high-purity melted silica. The industry highly values this material for its exceptional baseline purity and brilliant optical transparency. This visual clarity is particularly advantageous for rapid thermal processing chambers. These chambers rely on external optical sensors, UV lights, or pyrometers to precisely monitor wafer temperatures through the chamber walls. From a structural standpoint, quartz boasts a remarkably low coefficient of thermal expansion. This allows it to maintain its shape reasonably well during moderate temperature fluctuations.
Despite its pristine chemical makeup, quartz harbors distinct mechanical and thermal vulnerabilities. It is inherently brittle. This makes it highly susceptible to mechanical breakage during routine maintenance or automated robotic handling. More critically, quartz experiences devitrification when exposed to prolonged high temperatures typically crossing the 1100°C threshold. This is a degrading process where the smooth, amorphous glass structure slowly crystallizes into cristobalite. The result is micro-cracking, surface flaking, and a severe loss of structural integrity. Under the extreme heat required to melt polysilicon, quartz will simply soften and sag under its own weight.
For fabrication managers evaluating whether to upgrade legacy chamber consumables, comparing the empirical data of both materials is essential for optimizing long-term performance.
Property | Semiconductor Graphite SiC Coated | Fused Quartz |
|---|---|---|
Maximum Operating Temp | Up to 3000°C in inert atmospheres | Softens and deforms at 1100°C to 1200°C |
Thermal Conductivity | Excellent. Promotes rapid, uniform heat distribution. | Poor. Acts primarily as a thermal insulator. |
Thermal Shock Resistance | Exceptional. Absorbs rapid heating and cooling effortlessly. | Moderate to Low. Prone to catastrophic cracking if cooled rapidly. |
Machinability | High. CNC machined to incredibly complex, tight tolerances. | Low. Requires glass-blowing or molding, limiting geometric complexity. |
Chemical Resistance | Superior. Highly resistant to corrosive epitaxial plasmas. | Good. Resistant to many acids, but highly vulnerable to HF. |
Graphite fundamentally thrives in extreme heat. Remarkably, the tensile strength of semiconductor graphite actually increases as ambient temperatures rise toward 2500°C. Its superior thermal conductivity makes it the perfect medium for transferring heat perfectly evenly to sensitive silicon wafers. In contrast, quartz functions as a thermal insulator. It is highly useful in specific low-temperature applications. However, it cannot structurally support heavy mechanical loads at the temperatures required to manipulate raw silicon.
Aggressive thermal cycling is a daily reality in wafer processing. Graphite possesses a unique, interwoven matrix structure. This allows it to absorb massive, rapid temperature fluctuations without fracturing. Quartz remains highly vulnerable to thermal shock. If a heated quartz tube is cooled too quickly by an unexpected airflow, the internal stress causes catastrophic shattering. This leads to hazardous particulate showers and massive machine downtime.
Modern semiconductor tools increasingly demand components with intricate internal geometries, precise gas flow channels, and uncompromising dimensional tolerances. Because graphite is a solid block, it can be CNC-machined with extreme precision before the protective SiC coating is applied. Quartz is notoriously difficult to shape. It typically requires high-heat glass blowing or molding. This manufacturing reality severely limits the complexity and precision of the final quartz component.
The lifecycle of a microchip begins with the growth of a massive monocrystalline silicon ingot. This fascinating process perfectly illustrates how graphite and quartz are utilized in practice.
The Czochralski method involves melting highly purified polysilicon rocks inside a vacuum-sealed chamber and slowly extracting a single, structurally perfect silicon crystal. Raw silicon transitions to a liquid state at exactly 1414°C. Therefore, the internal environment of the CZ puller is incredibly hostile. It requires structural materials capable of generating, reflecting, and withstanding intense, sustained thermal energy.
Knowing that quartz severely deforms at these extreme temperatures, engineers must construct the structural and heating elements of the CZ puller entirely out of carbon. Fabs rely heavily on Semiconductor Graphite Crystal Growth Components to form the main heater, the reflective heat shields, the insulation cylinders, and the outer susceptor. Graphite remains the only commercially viable material capable of sustaining 1450°C continuously without melting, outgassing impurities, or losing its precise structural shape.
Despite graphite's absolute thermal superiority, it harbors one critical flaw in this specific environment. It cannot come into direct contact with molten silicon. If raw carbon touches liquid silicon, an immediate chemical reaction occurs. This forms silicon carbide impurities and permanently ruins the crystal lattice. To solve this, a high-purity quartz inner crucible is utilized to safely contain the liquid silicon melt. This quartz bowl sits snugly inside a rigid graphite susceptor. The graphite supports the softening quartz walls and efficiently transfers heat from the graphite heater into the silicon. This setup is a prime example of perfect material synergy within the fab.
Once the massive silicon ingot is sliced into paper-thin wafers, these substrates undergo various complex chemical and thermal treatments. At this stage, material selection shifts dynamically based on specific process parameters.
During epitaxy, a new, flawless layer of crystalline silicon is grown directly on top of the bare wafer. This highly sensitive procedure requires the introduction of corrosive precursor gases. It demands absolute temperature uniformity across the entire surface of the wafer. This ensures the new layer grows evenly without microscopic defects.
In these advanced epitaxial reactors, wafers cannot simply be placed on any surface. A Graphite Support Tray for Wafer Processing is highly favored and practically mandatory here. The graphite rapidly absorbs the heat generated by RF induction coils or intense infrared lamps. It then distributes this thermal energy perfectly evenly across the back of the wafer. Epitaxy utilizes highly corrosive cleaning gases like HCl. Therefore, the graphite tray must be completely encapsulated in CVD Silicon Carbide to prevent chemical degradation and block any chance of carbon contamination.
Specifically, quartz remains the dominant and preferred material in lower-temperature batch processes. These include thermal oxidation and diffusion. Large horizontal and vertical furnace tubes operate comfortably between 800°C and 1000°C. Here, slotted quartz boats securely hold hundreds of wafers simultaneously. At these moderate temperatures, quartz does not run the risk of thermal sagging. Its inherent lack of metallic ions ensures the wafers remain uncontaminated during long baking cycles.
For procurement engineers and fab managers, the selection of consumable materials extends far beyond raw technical specifications. It is a fundamental economic calculation. In the highly competitive landscape of wafer fabrication, minimizing the Total Cost of Ownership is just as critical as maintaining strict contamination controls.
When evaluating initial procurement expenses, quartz components generally present a much lower barrier to entry. Standard fused quartz is relatively straightforward to mold, blow, and shape. Conversely, the upfront cost of a custom-machined, SiC-coated semiconductor graphite component is significantly higher. This is due to the complex purification, CNC machining, and CVD coating processes required to produce it.
However, TCO is never dictated by the purchase price alone. The operational lifespan of graphite in high-temperature environments drastically alters the financial equation. Quartz begins to suffer from devitrification and brittleness at temperatures exceeding 1100°C. Graphite maintains its rigid structural integrity well beyond 2000°C. This exceptional durability means graphite components are replaced far less frequently. The higher initial investment is seamlessly amortized over thousands of operational hours.
The true hidden cost of a consumable component is measured in machine downtime and wafer yield loss. A single batch of ruined wafers due to particulate contamination or uneven thermal distribution results in devastating financial hits. Quartz components present a higher risk of catastrophic failure due to their inherent fragility. If a quartz tube cracks mid-process, the entire processing chamber must be taken offline, cooled, meticulously cleaned, and recalibrated. This costs thousands of dollars per hour in lost productivity.
By virtually eliminating the risk of sudden thermal fracturing and preventing thermal sagging, graphite components safeguard wafer yield and maximize tool uptime. This predictable reliability ultimately delivers a significantly lower Total Cost of Ownership over the life of the fabrication tool.
Selecting the optimal material for specific wafer fabrication processes is not a matter of declaring one universally superior to the other. Instead, engineers must align the distinct physical properties of semiconductor graphite and quartz with the precise environmental demands of the processing chamber.
Engineers should confidently specify semiconductor graphite when specific conditions are met. Choose graphite when operating temperatures consistently exceed the 1200°C threshold. It is the right choice when the process requires complex, tightly toleranced machined geometries like gas flow channels. Select it when absolute uniform thermal conductivity is paramount to the process, such as with epitaxial susceptors and CZ heaters. Finally, graphite is mandatory when the chamber environment involves highly corrosive plasmas or reactive gases requiring the protection of a SiC coating.
Furthermore, quartz remains the appropriate and highly effective choice under different operational conditions. Use quartz when the component must directly hold or contact molten liquid silicon. It is ideal when the process requires optical transparency for UV curing, laser alignment, or pyrometer temperature monitoring. Quartz is also perfect for applications involving lower-temperature diffusion or oxidation batch steps where thermal sagging is not a risk.
Semiconductor graphite and fused quartz serve vital, highly complementary roles within the modern fab ecosystem. Quartz remains unparalleled for safely containing molten silicon and providing optical clarity in lower-temperature environments. Graphite provides unmatched structural strength and thermal uniformity in the most extreme fabrication conditions. As microchip architectures continue to shrink and thermal budgets become increasingly strict, upgrading to high-purity, SiC-coated graphite components is no longer an optional luxury. It is a manufacturing necessity. By carefully matching material properties to specific chamber environments, fab managers can drastically reduce costly downtime, protect high-value wafer yields, and optimize their overall operational efficiency.
Are you looking to upgrade your chamber consumables to meet the rigorous demands of sub-5nm fabrication? Evaluate your process parameters and source premium, ultra-high-purity components to secure your yield. Visit Harog Semiconductor Graphite to explore expertly engineered graphite solutions tailored for your precise crystal growth and epitaxial applications.
In its bare form, graphite is a slightly porous material that can shed microscopic carbon dust particles. In a Class 1 or Class 10 cleanroom environment, even a single microscopic particle can act as a fatal contaminant, destroying the intricate circuitry of a semiconductor wafer. To prevent this, a Chemical Vapor Deposition process is used to apply a dense, impermeable layer of Silicon Carbide over the component. This coating completely seals the graphite matrix, stops particle shedding, and provides a highly chemical-resistant barrier against corrosive plasmas and precursor gases.
No, quartz cannot be used as a heating element in a crystal pulling furnace due to its fundamental thermal limitations. The Czochralski process requires temperatures of approximately 1414°C to melt raw polysilicon, and the surrounding heating elements must operate at even higher temperatures to maintain that melt. Fused quartz begins to soften, lose its structural integrity, and deform at temperatures between 1100°C and 1200°C. If used as a heater, quartz would quickly melt and collapse. Therefore, semiconductor graphite, which actually gains tensile strength at extreme temperatures and conducts electricity efficiently, is the mandatory material.
Standard industrial graphite contains significant levels of metallic impurities, including iron, aluminum, vanadium, and copper. If introduced into a semiconductor fabrication chamber, these metallic ions would vaporize in the heat and diffuse into the silicon wafers, permanently altering their electrical conductivity and causing immediate device failure. Semiconductor-grade graphite undergoes an extreme, high-temperature halogen purification process to vaporize and extract these impurities, reducing the total ash content to less than 5 parts per million. Additionally, it is isostatically pressed to ensure a uniform density that provides consistent thermal properties.
While the exact lifespan depends heavily on specific processing parameters and chemical environments, a SiC-coated graphite support tray generally outlasts a quartz equivalent by a massive margin. In high-heat and plasma-heavy environments like MOCVD or epitaxy, quartz is highly susceptible to devitrification, a process where the glass crystallizes, becomes brittle, and eventually cracks under thermal stress. Quartz is also prone to thermal sagging over repeated heating cycles. SiC-coated graphite maintains perfect dimensional stability and resists chemical degradation, often lasting several times longer than quartz.
Yes, carbon is highly reactive with molten silicon. If liquid silicon comes into direct contact with bare graphite, a rapid chemical reaction occurs that forms silicon carbide. This reaction introduces massive amounts of carbon impurities into the silicon melt, completely ruining the crystalline structure of the resulting silicon ingot. This chemical incompatibility is precisely why the CZ crystal pulling process utilizes a dual-crucible system. A high-purity fused quartz inner crucible safely holds the liquid silicon, while an outer graphite crucible provides the necessary mechanical support to the softening quartz.
The thickness of the Silicon Carbide coating is a critical engineering parameter. If the coating is too thin, it may not adequately seal the microscopic pores of the graphite, leaving the component vulnerable to chemical attack from etching gases like HCl. If the coating is too thick, the differing coefficients of thermal expansion between the graphite substrate and the SiC layer can cause severe internal stress during rapid thermal cycling, leading to micro-cracking or delamination. Precision CVD processes are required to achieve the exact optimal thickness that balances chemical protection with thermal flexibility.
Absolutely. In fact, combining both materials is standard practice in many high-temperature applications to leverage their complementary strengths. The most prominent example is the Czochralski crystal pulling furnace. In this environment, a fused quartz inner crucible is used because of its chemical inertness to molten silicon. However, because quartz softens at these extreme temperatures, it is placed directly inside a rigid graphite susceptor. The graphite provides the structural integrity that the quartz lacks, while the quartz provides the chemical barrier that the graphite lacks.
