One microscopic contaminant can instantly ruin a costly silicon wafer batch. Weeks of precise engineering turn into expensive scrap. Selecting the wrong carbon-based material causes severe thermal mismatch. This inevitably leads to warping, dangerous particle shedding, or catastrophic chemical contamination. How do you navigate complex material specifications? You need to choose the ideal semiconductor graphite for your specific fabrication process. Let us look at the practical engineering realities.
Key Takeaways:
Material Quality Starts at the Source: The choice of raw materials directly dictates the density, baseline porosity, and thermal limits of the final machined component.
Purity is Paramount: Ultra-pure grades containing less than 5 parts per million ash content are absolutely non-negotiable to prevent catastrophic wafer contamination.
Manufacturing Method Matters: Cold Isostatic Pressing creates the industry standard due to its uniform, isotropic properties, far outpacing traditional extruded alternatives.
Application Dictates Grade: Different manufacturing phases require highly specific grain sizes, thermal conductivities, and Coefficient of Thermal Expansion matching.
Standard industrial graphite works fine for basic heat resistance and natural lubricity. Step into a semiconductor fabrication plant, and the rules change entirely. Inside these chambers, ordinary carbon simply burns up or breaks apart.
Monocrystalline silicon crystal growth and epitaxial deposition happen in brutal environments. Crucial components face blindingly bright temperatures exceeding 1,500 degrees Celsius. In Silicon Carbide epitaxy, thermal loads surpass 2,000 degrees Celsius. Combine this heat with hard vacuums and highly corrosive halogen gases. Ordinary materials rapidly oxidize. They outgas trapped impurities. They structurally disintegrate.
Purpose-built semiconductor graphite survives these extremes. It features ultra-fine microcrystalline structures and exceptional thermal shock resistance. Most importantly, it maintains rigorous chemical purity. Dimensional tolerances for modern wafer carriers are measured in micrometers. Any slight deviation from thermal expansion ruins the even heating across a silicon wafer. Specifying a dedicated high-performance material guarantees long-term yield stability.
Producing a flawless component begins long before the block reaches a CNC machine. The intrinsic properties of the final product are permanently locked in during the initial selection of base elements. Maximum achievable density, baseline porosity, and absolute thermal limits start here.

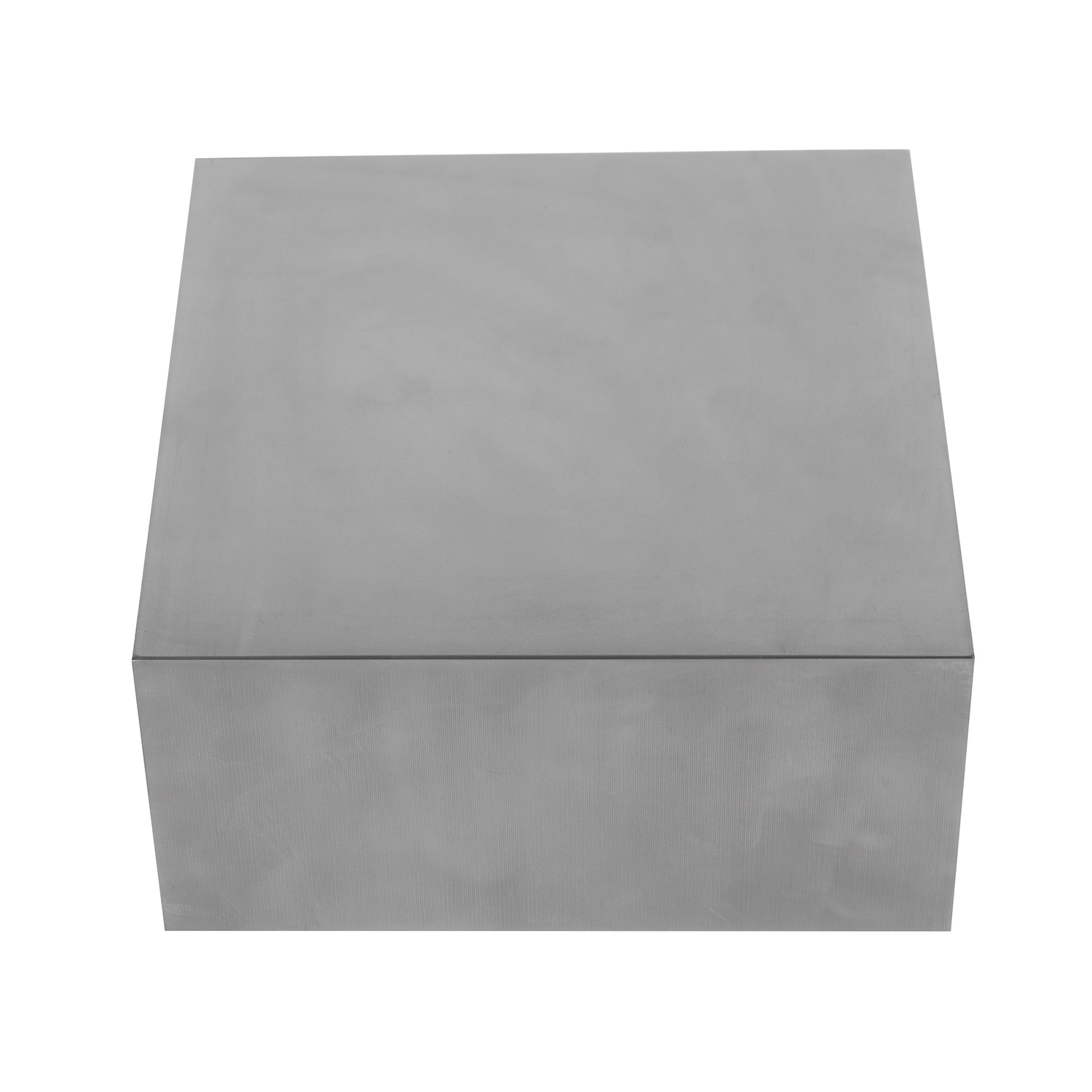

The primary Semiconductor Graphite Raw Materials consist of premium petroleum needle coke or isotropic coke. These are bound together using specialized low-impurity coal tar pitch. The quality and particle size distribution of these raw cokes dictate the block's microcrystalline structure. Manufacturers calcine these materials at highly precise temperatures to remove volatile compounds. This stabilizes the carbon lattice before mixing even begins.
When reviewing specifications for fab applications, grain size is a critical metric. Standard industrial grades feature grain sizes exceeding 100 microns. This leaves a porous, rough surface. Semiconductor applications demand ultra-fine grain sizes. We strictly control these to under 20 microns, and for critical susceptors, we engineer them below 5 microns.
This ultra-fine structure enables high-precision machining. Susceptors feature complex geometries and delicate wafer pockets. Coarse-grain blocks would simply shatter during fabrication. Furthermore, a denser surface minimizes particle shedding inside the cleanroom. It provides a smooth substrate for subsequent protective coatings.
Once powder mixtures are blended, they are formed into solid billets. The mechanical pressing method fundamentally alters the material's physical behavior. Procurement teams must understand this distinction to avoid catastrophic thermal failures.
Traditionally, extruded graphite is forced through a shaping die. Molded graphite is compressed in a single direction. Both older methods force carbon particles to align in a specific directional pattern. This creates an anisotropic material. Its physical and thermal characteristics vary wildly depending on the measurement angle. Inside a high-temperature furnace, anisotropic material expands unevenly. Machined parts warp or crack under the stress of rapid heating and cooling cycles.
To resolve directional expansion, modern fabricators rely on Cold Isostatic Pressing. The powder mixture is sealed in a flexible mold and submerged in a pressurized fluid chamber. Extreme hydraulic pressure applies uniformly from all 360 degrees.
The resulting isostatic graphite for semiconductor applications possesses a truly isotropic structure. Thermal conductivity, electrical resistance, and expansion rates remain identical across any angle. This delivers superior density and highly predictable dimensional stability.
Feature | Isostatic Graphite | Extruded Graphite |
|---|---|---|
Forming Method | Cold Isostatic Pressing | Die Extrusion |
Structural Property | Isotropic - Uniform in all directions | Anisotropic - Directional alignment |
Thermal Expansion | Highly predictable and even | Erratic, prone to warping |
Semiconductor Suitability | Mandatory for critical components | Unsuitable for precision fab use |
When reviewing a Material Data Sheet, engineers must look past the generic label of semiconductor grade. Specific physical properties must align with the intended application.
Right now, the semiconductor industry is aggressively pushing Moore’s Law toward 3nm and 2nm process nodes. Based on recent market analysis, the margin for error in thermal management has completely vanished. Foundries demand ultra-isotropic carbon grades with highly customized thermal properties. Even a nanometer of wafer warpage during Extreme Ultraviolet lithography ruins the yield of next-generation chips. Consequently, the global supply chain is shifting. Fabs are abandoning standard high-purity grades in favor of application-specific isotropic blocks with tightly controlled thermal expansion tolerances. Evaluating material properties meticulously is no longer just a best practice. It is a critical survival metric.
The Coefficient of Thermal Expansion measures how much a material swells as temperature increases. Carbon components frequently touch silicon wafers directly. Alternatively, they are encapsulated in Silicon Carbide or Pyrolytic Carbon layers. If the base substrate's expansion rate does not mirror the coating, differing expansion generates immense mechanical stress. This mismatch inevitably leads to delamination of expensive coatings or bowing of the delicate silicon wafer.
Thermal and electrical conductivity can be intentionally tuned. Epitaxial susceptors demand rapid, uniform heat transfer to ensure the wafer heats evenly. This requires high thermal conductivity. Conversely, heat shields in crystal pulling furnaces require exceptionally low thermal conductivity. They must retain heat within the crucible area to maximize energy efficiency.
Equipment components feature tight threaded holes and paper-thin walls. The chosen grade must possess high flexural strength alongside robust compressive strength. This ensures the material can be CNC-machined to exact micrometer specifications without hidden micro-fractures.
In wafer fabrication, contamination is the ultimate enemy. A single stray atom of a metallic impurity easily diffuses into the silicon crystal lattice. This permanently alters electrical properties and destroys the microchip.
Impurities are quantified as ash content. Standard industrial blocks contain hundreds of parts per million of ash. They harbor dangerous elements like iron, aluminum, and vanadium. At extreme operational temperatures, these metallic impurities rapidly vaporize. They diffuse into the molten silicon melt or deposit directly onto the wafer. Heavy metals act as recombination centers for electrons, causing immediate batch failure.
Top-tier manufacturers subject machined parts to rigorous purification. High purity semiconductor graphite undergoes intense high-temperature halogen purification. The material is heated to over 2,000 degrees Celsius and bathed in reactive halogen gases. These halogens chemically bond with trapped metallic impurities, converting them into volatile metal halides. The gases are forcefully evacuated, effectively stripping the block of contaminants. This specialized process brings total ash content below 5 parts per million. For cutting-edge logic nodes, we enforce ultra-high purity levels of less than 2 parts per million.
A dangerous misconception is that a hermetic Silicon Carbide coating makes substrate purity irrelevant. This is empirically false. Engineers frequently ask why graphite substrate purity matters for SiC coated parts. At extreme temperatures, trace impurities in a lower-grade substrate inevitably outgas. This volatile outgassing creates immense pressure beneath the coating layer. It leads to blistering, microscopic pinhole defects, and eventual coating rupture. The bare substrate must meet strict purity standards before any coating is applied.
Selecting the appropriate material grade is not a universal endeavor. Extreme variables demand highly specific material characteristics. You must carefully match physical and thermal properties to the exact requirements of each distinct manufacturing step.
During the Czochralski process, raw polysilicon is melted in a quartz crucible. A seed crystal is pulled upward to form a single-crystal silicon ingot. Temperatures sustain above 1,400 degrees Celsius for days. Components like crucible susceptors and heaters require exceptional thermal stability. They must not warp or sag under the immense weight of molten silicon. Purity is non-negotiable. Volatilized impurities penetrate the quartz crucible and contaminate the melt. Medium-to-fine grain isostatic grades with an ash content under 5 parts per million are the standard here.
Epitaxy involves growing a structurally perfect layer of silicon directly on a bare wafer. Wafers sit in shallow pockets on a rotating susceptor. Epitaxial susceptors demand the absolute highest tier of ultra-fine grain materials. Grain size must remain below 10 microns for flawless CNC machining. The susceptor must exhibit excellent thermal conductivity for even heating. Because these susceptors are coated with high-purity Silicon Carbide, perfect thermal expansion matching is the most critical performance metric.
Ion implantation dopes wafers with specific atoms to alter electrical conductivity. High-energy ion beams constantly bombard components like extraction electrodes. This acts like a microscopic sandblaster. The chosen grade must possess exceptionally high density and superior flexural strength. Utilizing an ultra-fine grain, maximum-density material ensures a significantly slower erosion rate.
Dry plasma etching processes utilize highly aggressive corrosive chemistries. Components like gas distribution showerheads must withstand severe chemical attacks. Grades selected for these applications must exhibit minimal porosity. High porosity acts as a sponge, allowing corrosive gases to penetrate deep into the core. We specify high-density, ultra-fine grain grades requiring extreme purity below 2 parts per million.
Sourcing advanced materials is a high-stakes decision. A slight variation in material properties from one batch to the next forces a fab to recalibrate its entire thermal process. Look past the initial price tag. Conduct a rigorous audit of the supplier’s technical capabilities.
Standard industrial blocks contain hundreds of parts per million of impurities. Achieving the strict sub-5 parts per million standard requires specialized halogen purification. Inquire about specific purification facilities. In-house processing guarantees tighter control over final ash content. Ask for detailed trace metal analysis reports conducted via Glow Discharge Mass Spectrometry to verify purity claims objectively.
Equipment components feature precisely angled wafer pockets and razor-thin walls. Machining brittle material requires specialized tooling and optimized feed rates. Evaluate the supplier's machining infrastructure. They should utilize state-of-the-art multi-axis CNC machines in environmentally controlled facilities. Request documentation on metrology equipment to verify micrometer dimensional tolerances.
The true foundation of reliable performance lies in raw material traceability. Changing the raw material source alters the component's thermal conductivity, even if machining remains identical. A reputable supplier offers complete traceability from raw coke to finished part. Request historical lot-to-lot consistency data. Always test physical material samples before committing to a large-scale contract.
Are you experiencing premature coating delamination or unexplained wafer contamination? Upgrading your carbon substrate is often the fastest path to stabilizing your yield. Browse the comprehensive range of specialized materials and find the exact specifications you need from the Harog Semiconductor Graphite catalog today. Consult with our engineering team to match the perfect isotropic grade to your thermal gradients.
For standard semiconductor applications, acceptable ash content is strictly maintained below 5 parts per million. As the microelectronics industry rapidly advances toward 3nm process nodes, the tolerance for contamination decreases significantly. These advanced applications require ultra-high purity grades with an ash content of less than 2 parts per million. This extreme purity ensures volatile metallic impurities do not vaporize and diffuse into the silicon crystal lattice.
Extruded graphite is formed by pushing raw materials through a shaping die. This aligns carbon particles in the direction of extrusion, creating an anisotropic structure. Physical and thermal properties vary heavily depending on the measurement direction. In an epitaxial reactor, rapid heating and cooling cycles are standard. An anisotropic extruded susceptor expands unevenly under intense heat. This causes the protective Silicon Carbide coating to crack and delaminate. Isostatic graphite features uniform properties in all directions and is mandatory for this application.
Grain size directly impacts both machinability and long-term structural integrity. Finer grain sizes, typically under 20 microns, allow for highly precise CNC machining. This is crucial for creating intricate features without causing delicate edges to chip. A fine-grain structure naturally reduces material porosity, minimizing particle shedding in cleanrooms. It also provides a highly uniform surface area for protective coatings, ensuring better adhesion.
The Coefficient of Thermal Expansion measures how much a material expands when heated. This critical property is fundamentally established through the selection of base materials. The specific type of petroleum coke used strictly dictates the microcrystalline structure. Different raw materials yield different crystal alignments and porosities. To maintain a consistent thermal expansion rate, manufacturers must maintain unwavering consistency in their raw material supply chain.
The operational lifespan of a susceptor depends heavily on the specific process environment and the thickness of its protective coating. In aggressive high-temperature environments like Silicon Carbide epitaxy, a susceptor might last anywhere from 50 to 150 runs before microscopic pinholes or coating degradation compromise performance. Utilizing an ultra-pure, perfectly matched isostatic base material significantly extends this lifespan by preventing premature coating delamination.
In Silicon Carbide epitaxy, operating temperatures frequently exceed 2,000 degrees Celsius. The graphite substrate is coated with a high-purity Silicon Carbide layer to prevent chemical attack. If the expansion rate of the base carbon does not perfectly match the coating, the two materials will expand and contract at different rates during thermal cycling. This generates massive internal shear stress, causing the coating to violently crack, peel, or shatter.
