Selecting the wrong material in high-stress industrial applications often triggers disastrous component failures. These failures lead to unexpected downtime and severely compromised yield rates. Engineers and buyers face a complex procurement dilemma every day. You must balance the premium cost of uniform material properties against the economical, large-scale viability of standard alternatives. Making the right choice directly determines your project's long-term profitability.
This article provides you an evidence-based framework for choosing the correct graphite grade. We evaluate mechanical constraints, thermal limits, and strict economic requirements. You will learn exactly how manufacturing methods dictate performance limits in the field. We will also explore which industries demand specific graphite structures to maintain operational integrity. By the end, you can confidently specify the ideal material for your exact use case.
Manufacturing dictates structure: Isostatic graphite is formed under equal pressure from all directions (CIP), resulting in uniform, isotropic properties, whereas extruded graphite is directional (anisotropic).
Performance vs. Application: Isostatic grades excel in high-precision, high-temperature environments (semiconductors, EDM), while extruded grades are optimal for high-volume, lower-tolerance applications (furnace linings, standard electrodes).
Cost evaluation: The higher upfront cost of isostatic graphite must be weighed against its extended lifespan, reduced machining waste, and lower risk of catastrophic failure in mission-critical applications.
Emerging use cases: Innovations in energy rely heavily on specialized materials, such as Isostatic Graphite Bipolar Plates for hydrogen fuel cells.

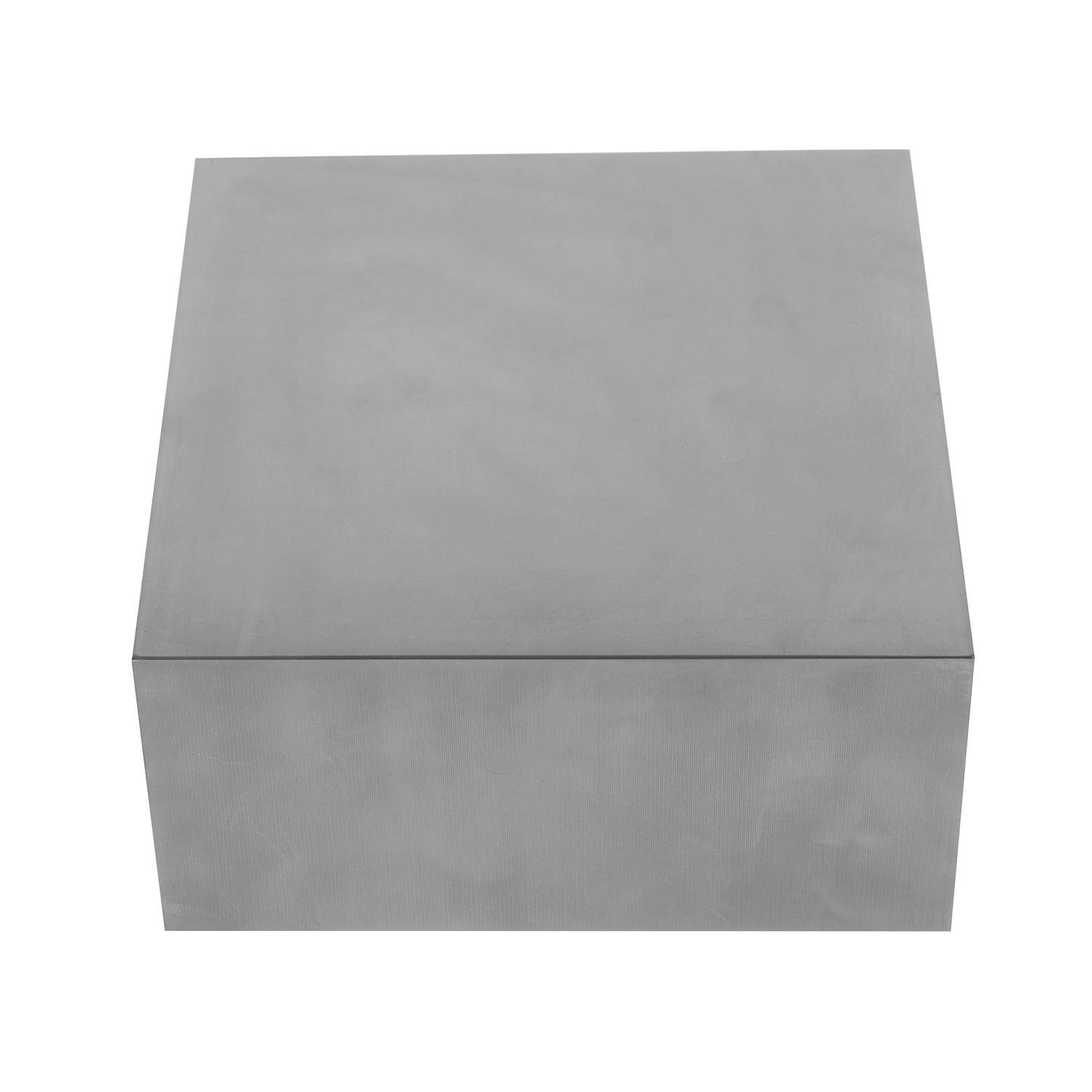

How a graphite block is manufactured strictly dictates what you can do with it. The production method limits your product design capabilities directly. You must understand these manufacturing origins to avoid costly engineering mistakes down the line.
Manufacturers create extruded graphite by forcing a heated carbon mixture through a shaped die under massive hydraulic pressure. Imagine squeezing thick paste through a rigid mold. This forceful mechanical action aligns the carbon particles along the specific axis of extrusion. We refer to this structural alignment as the "grain direction."
Because of this distinct directional bias, the material becomes highly anisotropic. Its physical properties differ significantly depending on how you measure them relative to the grain. Thermal expansion, electrical resistance, and flexural strength will vary drastically when tested parallel versus perpendicular to the extrusion axis. A common mistake engineers make is ignoring this orientation during the machining phase. If you machine an extruded block perpendicular to its strongest axis, you severely weaken the final component.
In stark contrast, manufacturers produce isostatic graphite using a highly controlled liquid-pressure environment. The Cold Isostatic Pressing (CIP) method applies equal, fluid multidirectional force to the raw carbon mixture. This hydraulic pressure compresses the material evenly from all conceivable sides simultaneously.
The process yields an ultra-fine grain structure with exceptional density. More importantly, it eliminates any trace of directional bias within the carbon matrix. The resulting material remains completely isotropic. You get identical mechanical strength, electrical resistance, and thermal expansion properties in every single direction. Best practice dictates using CIP materials whenever multidirectional stress is anticipated in the field.
However, standard extrusion holds a distinct physical advantage. It allows producers to create much larger dimensional blocks at a significantly lower cost. CIP equipment physically constrains the maximum block size available for isostatic grades. You must consider these dimensional limits early when designing large-scale structural components.
You must evaluate specific physical properties during the material shortlisting phase. Connecting these material features to practical outcomes ensures long-term operational success.
Isostatic grades feature incredibly high density and extremely low porosity. The intense multidirectional CIP process squeezes out internal voids effectively. Extruded graphite remains inherently coarser and noticeably more porous due to its linear formation method.
Higher density directly reduces harmful oxidation rates at extreme operating temperatures. Oxygen struggles to penetrate the dense surface of isostatic components. If your application involves harsh, reactive environments, minimizing porosity extends component life significantly. A porous extruded block will degrade rapidly under the exact same atmospheric conditions.
Anisotropic materials require careful directional alignment during machining and installation. If you orient an extruded block incorrectly within a furnace, you risk creating severe thermal bottlenecks. Heat will not dissipate evenly across the component, leading to dangerous hot spots. These localized hot spots often trigger premature structural failure.
Isostatic blocks eliminate this dangerous orientation risk entirely. They provide highly predictable, uniform heat distribution. You can machine them in any orientation without compromising thermal or electrical flow across the component body.
Edge chipping remains a major risk when milling coarse graphite. Large grains easily tear out under CNC tool pressure. The fine-grain structure of isostatic materials changes this dynamic completely.
It allows for complex, high-tolerance CNC machining. You can mill intricate features, deep channels, and razor-sharp edges without facing sudden structural failure. Operators save time and reduce waste because the isotropic material behaves predictably under the cutting tool.
Property Metric |
Extruded Materials |
Isostatic Materials |
|---|---|---|
Structural Alignment |
Anisotropic (Directional bias) |
Isotropic (Uniform bias) |
Typical Grain Size |
Medium to Coarse |
Ultra-fine |
Porosity Levels |
Higher |
Lower |
CNC Machinability |
Basic geometries only |
High-tolerance complex shapes |
Mapping specific graphite types to precise industrial applications simplifies procurement. Strict compliance and operational demands dictate these solution categories directly.
Extruded grades shine where structural uniformity takes a back seat to cost-efficiency. You should specify them for high-volume continuous casting operations. They serve exceptionally well as standard heating elements in industrial furnaces. Large-scale metallurgical crucibles also benefit immensely from the economical sizing of extruded blocks.
The global chip-making industry demands absolute precision. You must utilize premium Semiconductor Graphite Raw Materials for susceptors and crystal pulling components. High purity prevents costly silicon contamination during production. Exceptional thermal shock resistance ensures the parts survive extreme heating cycles without fracturing.
EDM requires precise spark erosion to cut hard metals like titanium or tool steel. Coarse graphite grains cause uneven, rapid wear on the cutting electrode. Ultra-fine grain structures ensure the electrode maintains its complex geometry throughout the lengthy cutting process. Operators achieve a superior surface finish on the target metal when using fine-grain isotropic electrodes.
Modern clean energy solutions rely heavily on highly specialized carbon components. Polymer electrolyte membrane (PEM) fuel cells require flawless internal plates to function efficiently. We see this immense demand clearly in the growing use of Isostatic Graphite Bipolar Plates. Absolute gas impermeability and uniform electrical conductivity are completely non-negotiable here. Even microscopic porosity can cause fatal hydrogen gas crossover within the fuel cell stack.
We avoid superficial claims stating one specific grade is universally superior. Instead, we present a balanced calculation regarding operational risk and long-term production yield.
We fully acknowledge the premium pricing attached to isostatic blocks. The CIP manufacturing process requires immense energy, specialized equipment, and longer production cycles. However, you must contrast this initial price tag against the hidden costs of using extruded materials in high-end applications.
Frequent part replacements drain maintenance budgets rapidly. A single ruined production batch due to unexpected thermal cracking can cost facilities thousands of dollars. The higher initial investment in premium materials often secures significantly higher yield rates in precision manufacturing environments.
Global graphite sourcing involves variable lead times and unpredictable quality fluctuations. Tiered suppliers often make unverified claims about their material properties. Procurement teams must actively manage these critical sourcing risks.
We strongly advise requiring comprehensive material certificates before finalizing any bulk purchase. You should verify exact grain sizes, ash content percentages, and specific density metrics. This rigorous documentation proves the supplier truly provides the isotropic properties they advertise. A common procurement mistake is accepting equivalent grades without checking the actual density testing reports.
Engineering and purchasing teams need a logical framework for material selection. Use this clear, step-by-step decision matrix to shortlist your options accurately.
Define Operational Limits: Determine the absolute maximum operating temperature of your industrial system. Next, define the strictly required atmospheric conditions. Is the part operating in a hard vacuum, or an inert gas environment? Extreme heat in a vacuum environment usually requires higher density grades to prevent premature sublimation.
Determine Machining Needs: Identify the smallest machinable feature required on your engineering CAD drawing. This precise dimension strictly dictates the maximum acceptable grain size for the raw material. If your design features microscopic channels or thin walls, you must select an ultra-fine grain material to prevent edge failure during milling.
Assess Directional Flow Requirements: Evaluate your electrical and thermal flow necessities thoroughly. Does the component design allow for directional alignment during installation? If the design strictly demands uniform heat transfer in all possible directions, isotropy is entirely mandatory.
Do not commit to bulk raw material orders blindly based on paper specifications. We recommend requesting small sample blocks first. Use these samples for localized prototype machining. Conduct your own thermal testing to validate the material properties in real-world conditions.
The choice between these two distinct graphite types requires careful calculation. It remains a strict structural and economic decision, not a simple quality contest. Each material serves specific industrial needs highly effectively.
For bulk structural economy, you should leverage extruded materials. They offer unbeatable financial value for large-scale, lower-tolerance applications where structural alignment is acceptable. Conversely, you must rely on isostatic materials for isotropic precision. They provide the severe-environment reliability absolutely necessary for advanced, high-stakes manufacturing.
Your specific operational parameters strictly dictate the final verdict. We highly encourage you to consult with a materials engineering specialist today. Alternatively, submit your detailed CAD drawings directly to your material supplier. Let the technical experts help you determine the optimal graphite grade for your critical application.
A: Semiconductor processes demand a flawless operational environment. High purity prevents elemental contamination during production. The complete absence of thermal stress points ensures consistent performance under extreme heat. Utilizing precise semiconductor raw materials provides an ultra-fine grain structure. This uniform integrity guarantees consistent silicon crystal growth without unpredictable thermal cracking.
A: You can occasionally use extruded materials for low-end, temporary testing. However, commercial fuel cells strictly require premium solutions like a Composite Isostatic Graphite Bipolar Plate. Extruded versions suffer from higher porosity, causing dangerous gas crossover between cell layers. Isostatic materials prevent this leakage and maintain uniform conductivity.
A: Grain size directly dictates how a material responds to cutting tools. Smaller grain sizes allow engineers to machine razor-sharp edges and intricate geometries cleanly. The material holds its shape without crumbling. In contrast, large grains common in extruded materials are highly prone to tear-out during milling operations.
