Every advanced microchip and high-efficiency solar cell begins its lifecycle as a flawless silicon ingot. Growing these massive crystals demands extreme heat and an absolute zero-contamination environment. Traditional metals or standard ceramics simply fail in this arena. They melt, warp, or pollute the delicate silicon melt. We rely heavily on a meticulously engineered Semiconductor Graphite Hot Zone to maintain process stability. By understanding its interlocking components, material science, and operational nuances, engineers and facility managers can significantly optimize vacuum furnace yields.

Key Takeaways

  • High-purity carbon materials are the only viable option capable of withstanding extreme temperatures and corrosive environments without introducing performance-degrading impurities.

  • A precisely designed thermal system directly dictates energy efficiency, thermal gradients, and the ultimate structural yield of crystalline silicon ingots.

  • The fundamental quality of the base materials is non-negotiable. Isostatic pressing and high-temperature halogen purification prevent carbon dust or ash contamination.

  • Critical components must be engineered with specific thermal properties to ensure a perfectly stable vacuum environment during grueling 72-hour growth cycles.

What is the Internal Thermal System?

The Heart of the Silicon Ingot Furnace

When you look through the viewport of a vacuum furnace, the interior glows with a blinding white-orange heat exceeding 1,450°C. This environment is exceptionally unforgiving. The actual melting of polysilicon and subsequent crystallization take place here. The entire system relies on carbon-based materials due to a unique physical anomaly. Unlike metals that soften under extreme heat, high-purity carbon increases in mechanical strength as temperatures approach 2,500°C. Furthermore, it does not melt. It sublimates at approximately 3,600°C, ensuring unwavering structural integrity during prolonged crystal pulling cycles.

The Czochralski Method vs. Directional Solidification Systems

In practice, internal systems are specifically tailored depending on the chosen crystal growth method. The Czochralski method is predominantly utilized for pulling cylindrical single-crystal silicon ingots. These are the foundational building blocks for high-efficiency solar cells and advanced microelectronics. Consequently, these setups require complex, perfectly symmetrical components to maintain a flawless radial thermal gradient. In contrast, Directional Solidification Systems are deployed for casting square multicrystalline silicon blocks. These systems focus heavily on vertical temperature gradients to control the upward directional cooling of the molten silicon, necessitating robust insulation blocks and large-capacity crucibles.

Core Components and Engineering Requirements

A thermal system is not merely a single monolithic part. Rather, it is an intricate assembly of interlocking components designed to create an isolated, highly controlled environment.

Heaters and Heating Elements

Heaters act as the primary radiant heat source. They are CNC-machined into highly specific geometries, often cylindrical with alternating vertical slits, to achieve a precise electrical resistance. When a high-amperage electrical current passes through the heater, it generates uniform heat. The electrical resistivity and thermal conductivity must be strictly controlled. Any molecular inconsistency will create localized hot spots. This inevitably leads to uneven melting of the silicon and potential catastrophic structural failure of the heater itself.

Crucibles and Susceptors

Molten silicon is notoriously reactive and is typically held in a high-purity quartz crucible. However, at operating temperatures, quartz becomes soft, viscous, and structurally unstable. The outer susceptor acts as a rigid support structure that cradles the softening quartz. It prevents the vessel from collapsing under the immense weight of the liquid silicon. Therefore, this component must exhibit high flexural strength—typically exceeding 40 MPa—and excellent thermal conductivity to transfer heat efficiently into the melt.

Base Support for Crystal Growth

The foundation of the crystal growth process requires highly stable support structures. A specialized Graphite Substrate for Crystal Growth serves as a chemically inert platform within the furnace. This specific component must possess a coefficient of thermal expansion that is perfectly matched to the surrounding environment. If the expansion rate is misaligned, it will induce mechanical stress or high-frequency vibrations. These physical disturbances can easily introduce fatal dislocations into the growing silicon lattice.

Heat Shields and Insulation Tubes

To maintain peak energy efficiency and protect the outer water-cooled steel shell, the active area is enveloped by heavy insulation. This is typically constructed from rigid felt or advanced carbon-carbon composites. These materials possess exceptionally low thermal conductivity. They effectively reflect radiant heat back toward the crucible. This not only minimizes baseline power consumption but also helps operators maintain the steep thermal gradients required for optimal crystal pulling.

Component

Primary Function

Critical Engineering Parameter

Heater

Generates uniform radiant heat

Consistent electrical resistivity & Bulk Density ≥ 1.82 g/cm³

Susceptor

Supports the softening quartz crucible

Flexural strength ≥ 40 MPa at 1500°C

Substrate

Provides a stable base for crystal seeding

Matched thermal expansion coefficient

Insulation Shield

Retains heat and protects furnace shell

Ultra-low thermal conductivity & Ash < 5ppm

Looking at recent industry developments, the global shift toward advanced N-type solar cells alongside the semiconductor industry transition to 300mm wafers has drastically altered thermal requirements. These next-generation applications demand unprecedented silicon purity. Even a fraction of a part per million of metallic impurity can ruin minority carrier lifetimes. Consequently, the thermal burden on furnace internals has intensified. Modern fabrication facilities must adopt larger and more robust thermal systems capable of sustaining steeper gradients over extended pulling cycles without micro-spalling. This trend firmly positions ultra-pure, isostatically pressed materials as the foundational pillar for future ingot production.

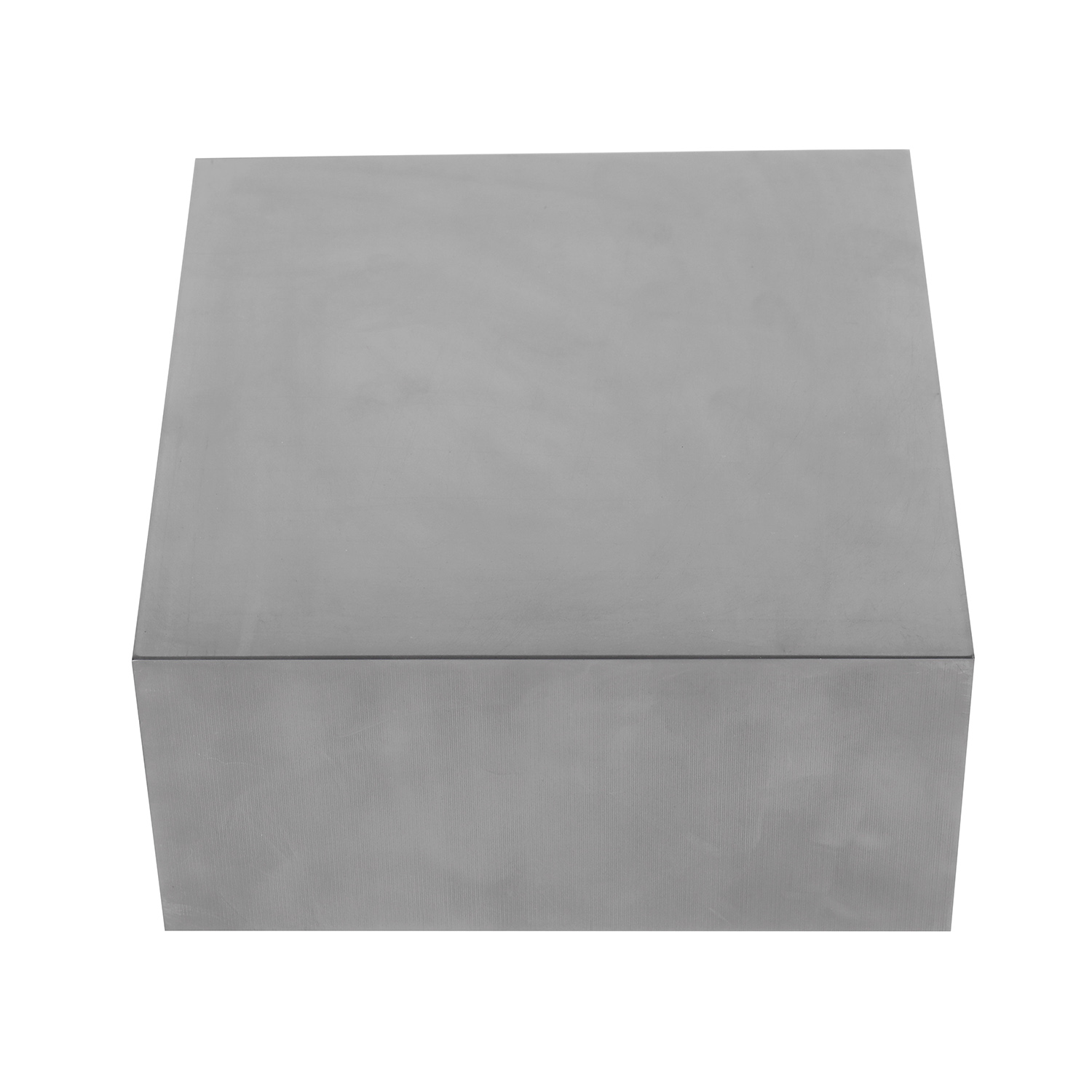

High Purity Raw Materials in Silicon Ingot Furnaces

The Importance of Base Material Quality

The foundation of any high-performing system lies directly in the molecular structure and purity of its base materials. When operating at extreme temperatures in a vacuum environment, physical characteristics dictate the stability of the entire process. Facility managers must understand that manufacturing methods significantly alter performance.

Isostatic Pressing vs. Extruded Materials

The manufacturing process determines structural integrity under extreme thermal stress. Isostatic pressing is universally recognized as the superior method for ingot furnaces. Extruded materials are formed by pushing a carbon mixture through a die, which aligns grains in a single direction. This creates an anisotropic material. Its thermal expansion and mechanical strength vary depending on the direction of the measurement. In a high-temperature environment, anisotropic materials are highly prone to uneven expansion, leading to warping and premature failure.

Conversely, premium Semiconductor Graphite Raw Materials are subjected to equal pressure from all directions during the molding phase via isostatic pressing. This results in an isotropic structure. Isotropic materials exhibit uniform thermal conductivity, consistent electrical resistance, and identical thermal expansion coefficients across all axes. For highly sensitive components, this uniformity is absolute necessary.

The Purification Process

To achieve semiconductor-grade status, the raw blocks must undergo a rigorous high-temperature halogen gas purification process. The blocks are heated to over 2000°C in a vacuum furnace while halogen gases are introduced. These gases react with trapped metallic impurities to form volatile metal halides. Vacuum pumps subsequently extract these impurities from the chamber. This exhaustive process ultimately achieves the strict sub-5 ppm ash content requirement.

Advanced Coating Technologies

Even ultra-pure materials can degrade when exposed to corrosive silicon oxide vapor generated during the melting process. To mitigate this, advanced components are often treated with a Silicon Carbide coating applied via Chemical Vapor Deposition. The coating creates a highly dense, impermeable barrier over the porous surface. This prevents silicon vapor from penetrating the matrix, thereby halting structural erosion and significantly extending operational lifespan.

Why This Material is the Gold Standard

Ultra-High Purity Standards

Relying on standard industrial grades is a recipe for disaster in semiconductor applications. Standard grades are riddled with trace metallic impurities such as iron, aluminum, titanium, and vanadium. If these metals vaporize and contaminate the silicon melt, they create deep-level traps in the silicon lattice. This drastically reduces the electrical efficiency of the resulting microchip. Semiconductor-grade materials undergo extreme purification to ensure a zero-contamination environment.

Exceptional Thermal and Chemical Stability

Inside the furnace, internal components are continuously bombarded by volatile silicon oxide vapor and argon gas. Standard metals would quickly corrode, oxidize, or melt. However, utilizing high-grade graphite for vacuum furnaces ensures exceptional chemical inertness. Beyond this, it possesses remarkable resistance to thermal shock. It easily withstands the rapid temperature fluctuations that occur during heating and cooling phases without cracking.

Actionable Guide: Selecting the Right Supplier and Materials

Procurement managers and engineers should move beyond abstract concepts and use a strict technical checklist when evaluating replacement parts for their thermal systems.

Verify Isotropic Properties: Demand a bulk density of at least 1.82 to 1.85 g/cm³. Higher density indicates lower porosity, which directly translates to better mechanical strength and reduced vulnerability to vapor attack.

Demand Traceability and GDMS Testing: Ensure the supplier provides a Certificate of Analysis demonstrating trace element testing via Glow Discharge Mass Spectrometry. This is the only way to prove the material strictly meets the sub-5 ppm ash content requirement.

Evaluate Machining Tolerances: The thermal dynamics rely heavily on tight seals. The supplier must possess 5-axis CNC machining capabilities to create intricate interlocking threads and precision joints. Poor machining leads to parasitic heat leaks.

Assess Supply Chain Reliability: Because these parts are consumables with predictable replacement cycles, supply chain stability is paramount. A delay in receiving replacement heaters can force a facility to idle multi-million-dollar equipment. Partner with suppliers offering predictable lead times.

Maximizing Lifespan on the Factory Floor

While highly resilient to heat, these are consumable materials that degrade over time. Implementing strict operational protocols maximizes component lifespan and optimizes the return on investment.

Despite high-temperature strength, the material is mechanically brittle at room temperature. The majority of premature failures are traced back to improper handling during installation. Technicians must utilize calibrated torque wrenches to prevent thread shearing on interlocking parts. Specifically, operators must wear clean, lint-free cotton gloves. Even a microscopic transfer of sodium or oils from human sweat acts as a catalyst for localized devitrification at 1,450°C.

Thermal shock is the primary cause of structural failure. Rapid temperature spikes cause the exterior of the component to expand faster than the interior, leading to stress fractures. Facility managers must implement strict programmable logic controllers for heating and cooling cycles. Proper annealing procedures—cooling the furnace slowly in a controlled argon atmosphere—allow internal residual stresses to relieve naturally.

Ultimately, your crystal yield depends entirely on the structural and thermal integrity of your furnace internals. Upgrading to premium, isostatically pressed components is a direct investment in profitability and reduced batch rejections. For engineers looking to optimize their thermal systems, exploring the high-purity solutions at Harog provides a reliable pathway to next-generation silicon production.

FAQ

What is the difference between standard industrial grades and semiconductor grades?

Semiconductor grades undergo extreme purification processes utilizing high-temperature halogen gases to reduce ash and trace metal impurities to less than 5 parts per million. Standard industrial materials contain higher levels of these impurities, which would vaporize in a vacuum furnace and irreversibly contaminate the electrical properties of the growing silicon ingots.

How long do these internal components last in a silicon ingot furnace?

Lifespans vary significantly by the specific component and operational parameters. High-stress components like heaters and crucibles may last a few months depending on the frequency of heating cycles. Conversely, static components like insulation tubes and outer heat shields can often last over a year with proper handling, strict temperature ramping protocols, and routine maintenance.

Why is a specific base substrate necessary for crystal growth?

The substrate serves as the foundational base for the crystallization process. It must provide a perfectly flat, thermally uniform, and chemically inert surface. Any physical irregularity or thermal inconsistency causes the growing silicon crystal to warp, introduce thermal stress, or develop severe structural dislocations within the atomic lattice.

How does bulk density affect thermal system performance?

A higher bulk density indicates a tighter, less porous molecular structure. This reduces the surface area vulnerable to corrosive silicon oxide vapor attack. Consequently, higher density materials offer superior mechanical strength, better thermal conductivity, and a significantly longer operational lifespan inside the furnace.

What causes carbon dust contamination in silicon ingots?

Carbon dust contamination is primarily caused by micro-spalling. This occurs when microscopic particles flake off due to severe thermal shock or the degradation of low-grade, anisotropic materials. Utilizing ultra-pure, isostatically pressed materials with proper annealing protocols eliminates this risk.

Can these raw materials be recycled after use?

Once components have been heavily degraded or infiltrated by silicon vapor during the crystal pulling process, they can no longer be reused for high-purity semiconductor applications. However, high-purity scrap can be mechanically crushed and repurposed as a carbon additive for lower-tier metallurgical applications or standard foundry operations.

How does the thermal system affect the Czochralski process?

The thermal system is the critical engine of the process. It dictates the precise, symmetrical temperature profile required to properly melt the raw polysilicon and slowly pull the seed crystal. A highly stable environment ensures the thermal gradient remains consistent, allowing the crystal to grow symmetrically without introducing structural defects or thermal stress fractures.
