In today’s rapidly advancing technological landscape, effective thermal management and heat dissipation have become critical design considerations across a wide range of industries. Whether in electronics, automotive systems, renewable energy infrastructure, or industrial machinery, managing heat efficiently can directly influence performance, reliability, safety, and longevity. One material that has emerged as a key solution in addressing thermal challenges is graphite.
From its exceptional thermal conductivity and lightweight nature to its flexibility in manufacturing and chemical stability, graphite offers a unique combination of properties that make it invaluable for modern thermal management applications. This article explores graphite’s role in thermal management and heat dissipation, diving into its fundamental properties, practical applications, design considerations, manufacturing approaches, and future trends. Written from an enterprise-first perspective, it aims to provide engineers, decision-makers, and industry practitioners with actionable insights on incorporating graphite solutions into their systems.
Finally, this article highlights why professionals and manufacturers often turn to experienced partners like Zhejiang Harog Technology Co., Ltd. for advanced graphite products and customized thermal management solutions.
Any device or system that consumes energy inevitably generates heat as a byproduct. If that heat is not effectively managed, it can lead to several performance and safety issues, including:
Reduced Efficiency: Excessive heat can degrade electrical conductivity and mechanical performance.
Component Failure: Semiconductor devices, batteries, and power electronics are sensitive to elevated temperatures.
Safety Risks: Overheating can lead to thermal runaway, fires, or irreversible damage.
Shortened Lifespan: Temperature stress accelerates material aging and wear.
Modern systems increasingly operate at higher power densities, compact form factors, and in harsher environments — all of which make efficient thermal management indispensable.
Historically, engineers have relied on metals like aluminum and copper for heat sinks, spreaders, and cooling plates because of their respectable thermal conductivity. While these materials are effective to some degree, they also carry limitations:
Weight and Cost: Metals are heavy and can significantly increase product weight and manufacturing costs.
Machinability Constraints: Complex or thin structures can be difficult or expensive to produce in metal.
Corrosion and Compatibility: Metals may require protective coatings to prevent corrosion in certain environments.
These limitations have driven interest in alternative materials that can offer comparable or superior performance while addressing the drawbacks inherent in traditional thermal solutions.
Graphite stands out because of its extraordinarily high in-plane thermal conductivity, which can exceed many metals. In certain engineered forms — such as expanded graphite or compressed graphite sheets — thermal conductivity can reach values comparable to or exceeding copper on a per-weight basis.
This high thermal transfer capability allows heat to spread quickly and evenly across surfaces, minimizing local hotspots and facilitating more efficient cooling.
Unlike metals, graphite is inherently lightweight and offers the flexibility needed for advanced form factors. This attribute is especially valuable for applications where weight reduction is a priority, such as in aerospace, electric vehicles, and portable electronics.
Graphite can also be fabricated into thin sheets, foils, or customized shapes that conform to irregular surfaces — a versatility that traditional metal heat spreaders cannot match without complex machining.
Graphite exhibits stable thermal behavior across wide temperature ranges and resists degradation in many chemical environments. This makes graphite suitable for applications involving high temperatures, corrosive atmospheres, or repeated thermal cycling.
Graphite’s layered structure and ability to form conformable sheets or foams mean it can achieve excellent surface contact with heat sources — a critical requirement for efficient heat transfer. Close contact reduces thermal interface resistance, enabling more effective heat extraction.

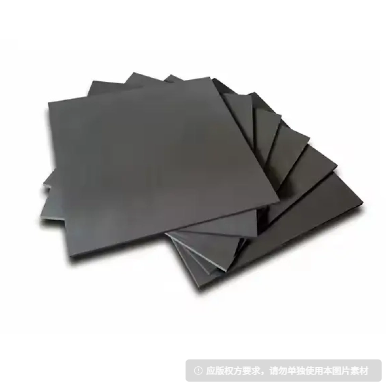

Graphite sheets — also referred to as thermal interface materials (TIMs) — are thin, flexible layers that can be inserted between heat-generating components and heat sinks or spreaders. Their high thermal conductivity and ability to conform to surface irregularities make them ideal for bridging microscopic gaps that would otherwise impede heat flow.
Applications include:
Smartphones and mobile devices
Laptops and tablets
LED lighting modules
Compact power electronics
Graphite sheets offer a balance of performance, manufacturability, and cost, making them a preferred choice for high-performance thermal interfaces.
Heat spreaders made from graphite are designed to distribute thermal energy over a larger area, reducing peak temperatures and easing demands on active cooling systems like fans or liquid coolers. They are commonly used in:
Battery packs for electric vehicles
High-power LEDs
Server and data center equipment
Telecommunications modules
Compared to metal spreaders, graphite spreaders offer superior weight savings and can often be integrated more easily into compact designs.

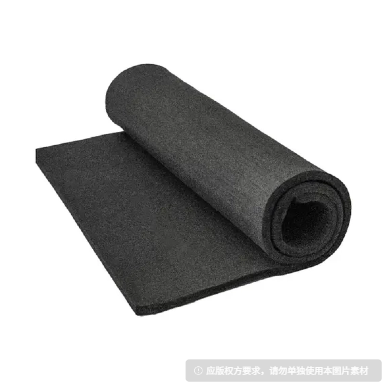

Graphite foams — characterized by a highly porous internal structure — are increasingly used where three-dimensional heat distribution and low weight are required. The interconnected network of pores allows for active coolant flow while providing a high surface area for thermal exchange.
Typical uses include:
Liquid cooling systems
Heat exchangers
Advanced aerospace thermal solutions
Porous graphite structures combine excellent thermal performance with weight reduction — a key advantage in demanding environments.
Graphite can be combined with polymers or other reinforcing materials to produce graphite composites that balance thermal conductivity with mechanical strength. By tailoring the composite formulation, manufacturers can achieve specific performance targets such as improved rigidity, dimensional stability, or flame resistance.
Graphite composites find applications in:
Automotive electronic modules
Industrial power supplies
Consumer electronics housings
Thermal management panels
Modern mobile devices push significant power through compact platforms. Chipsets, power amplifiers, and battery packs generate heat that must be spread quickly to avoid throttling and ensure user comfort.
Graphite sheets and foils are ideal in these scenarios due to:
Thin profile suitable for slim device designs
High in-plane thermal conductivity
Conformability to uneven contact surfaces
By integrating graphite thermal interfaces, smartphone manufacturers can improve performance without compromising form factor.
Laptop and ultrabook designs demand cooling solutions that are thin, effective, and lightweight. Traditional heat pipes or fans add bulk and noise, while graphite solutions can enhance passive heat dissipation.
In ultrathin laptops, graphite spreaders serve to channel heat away from CPUs and GPUs to larger surface areas, where it can dissipate more evenly or be pulled into active cooling systems.
High-performance computing, artificial intelligence, and 5G network infrastructure pose significant thermal challenges. Power electronics boards and server modules generate tremendous heat, requiring advanced cooling strategies to maintain uptime and reliability.
Graphite plates can be integrated into racks, modules, and heat exchange assemblies to facilitate even heat distribution across large areas, reducing localized stress on components.
Electric vehicles (EVs) and hybrid vehicles rely on large battery packs that generate heat through charge and discharge cycles. Uneven heat can reduce battery efficiency, accelerate degradation, or create safety concerns.
Graphite thermal spreaders and sheets help manage heat within battery modules by:
Facilitating lateral heat conduction away from hotspots
Reducing temperature gradients between cells
Improving thermal uniformity across the pack
This contributes to longer battery life, improved performance, and safer operation.
EV power electronics — including inverters and DC-DC converters — must handle significant power. These components often operate near elevated temperatures, and inefficient heat dissipation can reduce efficiency or shorten product life.
Graphite heat spreaders and interface materials help channel heat out of power electronics housings and toward radiators or cooling loops. Their lightweight and compact nature complement automotive design requirements focused on efficiency and weight reduction.
Solar power systems rely on inverters to convert DC to AC power. These devices operate outdoors, often in hot environments, and require reliable cooling to ensure continuous operation.
Graphite components aid in:
Spreading heat across inverter housings
Lowering peak junction temperatures
Enhancing passive cooling performance
Graphite’s stability in outdoor conditions and resistance to degradation make it suitable for solar applications with long service life expectations.
In wind turbines, electronic control modules and power converters sit inside nacelles where airflow can be turbulent and heat buildup is common. Graphite spreaders and thermal interface materials complement forced cooling strategies to improve reliability under variable operating conditions.
Heavy industrial equipment — from servo drives to power rectifiers — generates thermal loads that must be managed to maximize uptime and reduce maintenance costs. Graphite elements can serve as thermal bridges or spreaders within enclosures, helping to maintain even temperatures across critical components.
Graphite has emerged as a foundation material for thermal management and heat dissipation across industries ranging from consumer electronics to electric vehicles, renewable energy, and heavy industrial systems. Its exceptional thermal conductivity, lightweight nature, chemical stability, and manufacturability make it a versatile solution for addressing modern thermal challenges.
Engineers and product developers aiming for efficient heat management, compact design, and long-term reliability increasingly turn to advanced graphite products. For businesses seeking tailored solutions, technical support, and high-quality materials that align with evolving industry demands, Zhejiang Harog Technology Co., Ltd. offers deep expertise in graphite manufacturing and customization — supporting next-generation systems with dependable thermal management components.
Q: Why is graphite effective for heat dissipation compared to metals?
A: Graphite exhibits exceptionally high in-plane thermal conductivity while remaining lightweight and flexible, enabling efficient heat spreading with design versatility that metals cannot easily match.
Q: What forms of graphite are commonly used in thermal management solutions?
A: Graphite sheets, foils, spreaders, foams, and composite structures are widely used for thermal interfaces, heat distribution layers, and lightweight heat spreaders in various systems.
Q: How does graphite help manage heat in electric vehicle batteries?
A: Graphite thermal spreaders and sheets channel heat away from individual cells, reduce temperature gradients, and improve battery performance, safety, and longevity.
Q: Can graphite be integrated with active cooling systems?
A: Yes. Graphite is often paired with fans, liquid cooling loops, or heat pipes to enhance overall system cooling efficiency by spreading heat evenly before active removal.
